Name: BdvI Hot Sale Transformer Oil Breakdown Voltage Test Kit
Brand: Delta
Price: 1.0 USD

Brand Name : Delta

Model Number : BDV-I

Certification : ISO9001

Place of Origin : China

MOQ : 1 set Insulating Oil BDV Test Kit 80kV

Price : USD1.0

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets per month

Delivery Time : 10 days

Packaging Details : Bdv-I Oil Breakdown Voltage Test Kit packed in veneer case

Item Name : Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit

Functions : Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit,Insulating Oil BDV Testing

Test voltage : Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit,0-80kV or 0-100kV

Rate of voltage rise : 2KV/s±10%

Test standards : IEC60156

Size : 420×380×410mm

Weight : 28KG

Power supply : AC220V ± 10%, 50Hz/60Hz

Warranty : One year

Service : OEM service is available

Contact Now

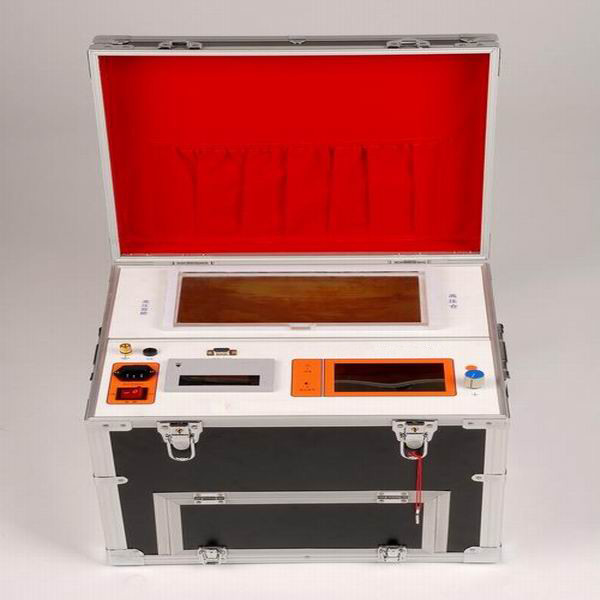

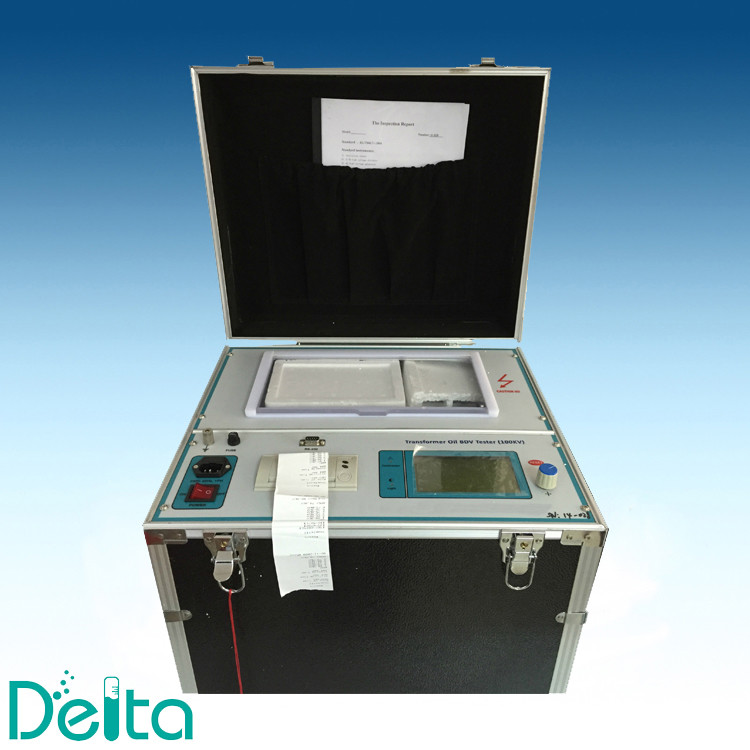

BDV-I Hot Sale Transformer Oil Breakdown Voltage Test Kit

BDV-I Oil Breakdown Voltage Test Kit is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
BDV-I Oil Breakdown Voltage Test Kit is very easy for customers to measure the breakdown voltage of all kinds of oil by it.You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

No.	Item Name	Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit
1	Output voltage	AC 0~80KV/AC 0~100KV
2	Rate of voltage rise	2KV/s±10%
3	Measuring precision	3%RDG+0.3%FS
4	Test times setting	1~9
5	Mixing time setting	0~99 second
6	Waiting time setting	0-9 minute 59second
7	Maximum storage capacity	100 groups of test data
8	Test standards	IEC60156
9	Display	256*128 LCD
10	Rated power supply	AC 220V±10% 50Hz/60Hz
11	Environment temperatures	0-50°C
12	Relative humidity	≤80%RH
13	Size	420×380×410mm3
14	Weight	28kg
