JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting

Name: JF2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting
Brand: Delta
Price: 1.0 USD

JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting Manufactures

Brand Name : Delta

Model Number : JF-2004

Certification : ISO9001

Place of Origin : China

MOQ : 1 set Partial Discharge Detector

Price : USD1.0

Payment Terms : T/T, Western Union

Supply Ability : 100 sets Partial Discharge Detector per month

Delivery Time : 45 days

Packaging Details : JF-2004 Partial Discharge Detector is packed in veneer case

Item Name : JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting

Function : Detect Partial Discharge of Gis, Transformer, etc.

Application field : Electric industry

Reference standards : 9031809090

Dimension : 600(W)*310(D)*545(H)mm

Weight : 0.4kg

Test Objects : Transformers, Gis, Overhead Lines, Cable, Cabient

Detection Method : Ultrasonic Method

Application Field : Electrical Industry

Description : JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting

Functions : Detect Partial Discharge of Gis, Transformer, etc.

Features : Partial Dischage Detector For Transformer GIS Cable Motor Detecting

Power Supply : Built-in Battery, 3.7V/1ah Lithium Battery

Battery Working Time : About 8 Hours

Display : 4.0 Inch RGB LCD Screen

Data Storage : 16g SD Card

Sensors : Sensor of Gis Is Free,Other Detectors Are Optional

Language : English

Contact Now

JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting

Introduction:

JF-2004 Electric Testing Partial Dischage Detector is used for the detection and evaluation of the insulation status of high-voltage switchgear, ring network cabinets, transformers, GIS, overhead lines, cable terminals, cable branch boxes and other equipment.
Partial discharge intensity detection: By measuring the discharge signal within a power frequency period, the intensity of partial discharge is characterized according to the maximum value (dB) in the discharge pulse sequence.
Partial discharge frequency detection: The device measures the discharge signal within a power frequency period, extracts discharge pulses, and characterizes the frequency of partial discharges according to the number of discharge pulses.

Standards:

ASTM: ASTM D2863
ISO: ISO 4589-2
NES: NES 714

Application Field:

Building Materials;
Wire&cable;
Upholstered furniture;
Others;

Features:

Configure different sensors to realize partial discharge detection of almost all electrical equipment;
The humanized man-machine interface facilitates data management of different devices, including traceback of historical data change trends, and horizontal and vertical data analysis, and realizes 360 ° comprehensive diagnosis of the device under test;
Built-in ultrasonic sensors and transient ground voltage (hereinafter referred to as TEV) sensors, which can be connected with special sensors such as transformers, GIS, overhead lines, and cables;
Adopt a non-intrusive detection method, no power failure during the test, maybe no high voltage source is applied, which is more convenient to use than a traditional pulsed partial discharge detector;
The test bandwidth range is 30kHz ~ 2.0GHz, suitable for the detection principle of various frequency bands;

Parameters:

Item Name	JF-2004 Partial Dischage Detector For Transformer GIS Cable Motor Detecting
Measuring range	0-60 dBmV
Resolution	±1dB
Maximum pulse per cycle	1400
Measurement frequency	3~100MHz
Display	4.0 inch RGB LCD screen
Controller	ARM
Connector	USB interface (also charger input) 3.5mm stereo headphone jack External ultrasonic sensor input wireless Wi-Fi Wireless synchronization benchmark
SD card	standard 16G
Earphone	minimum 8 ohm
Humidity	20-85% relative humidity
Weight	0.4KG(host)

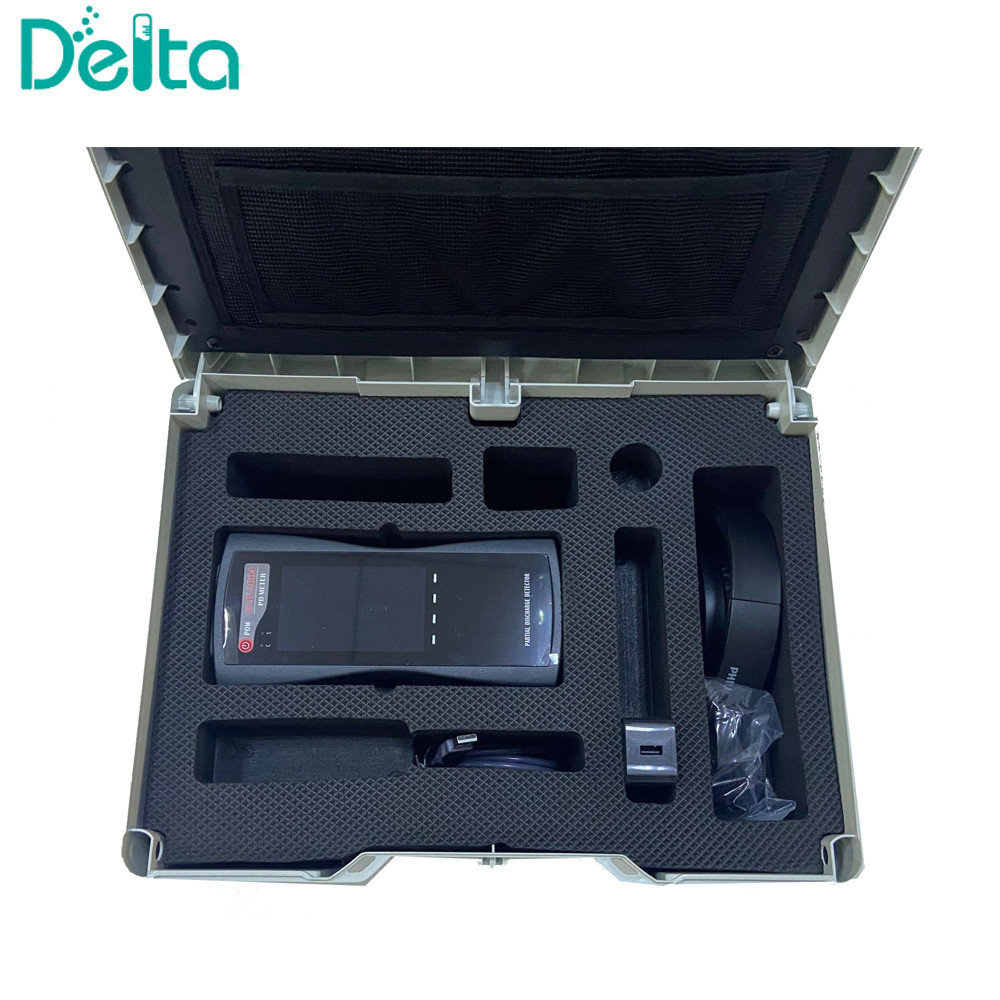

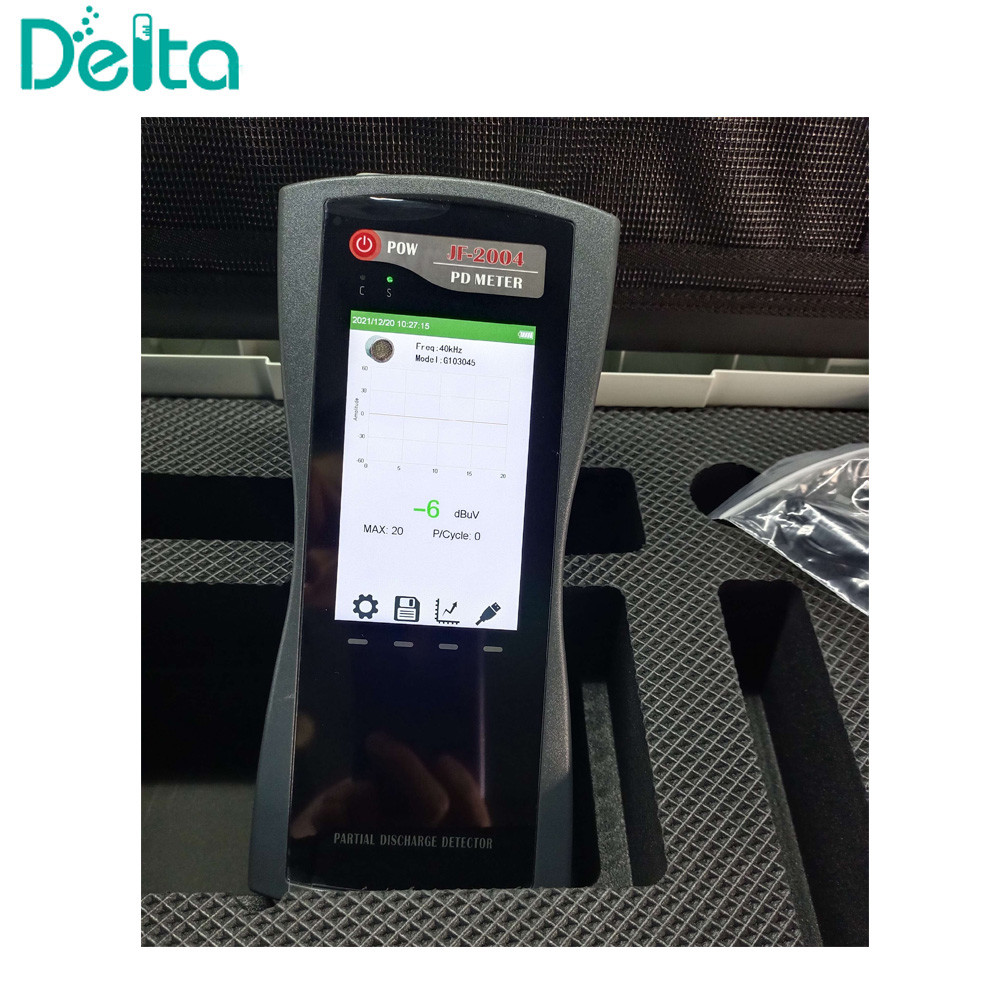

JF-2004 Partial Discharge Detector Picture:

JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting

JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting Images
